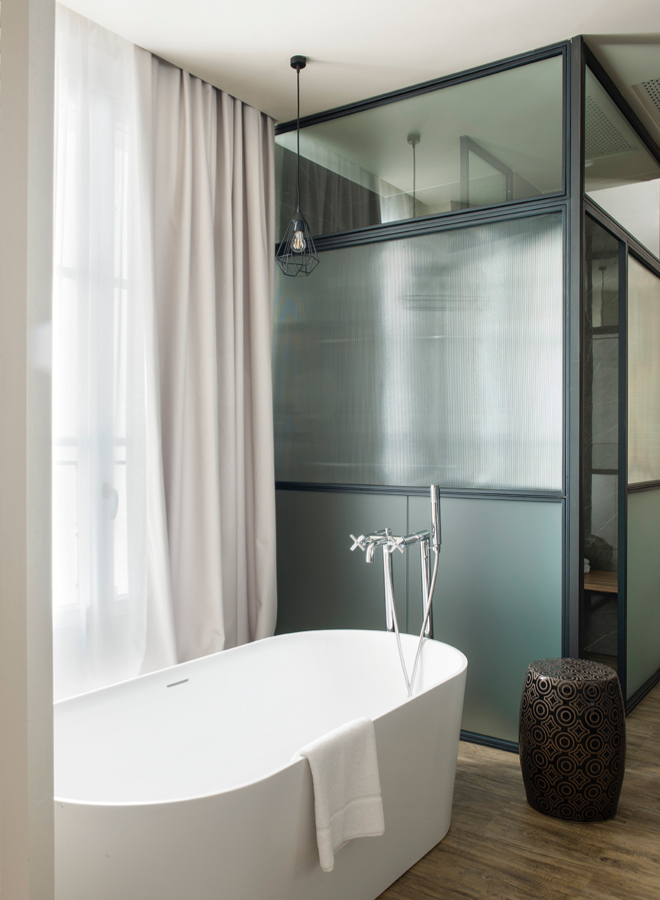

Secritex ON provides a WW patent pending waveform allowing not only maximum transparency on full operation and minimum haze, but also control over a range of smooth gradual dimmed transparencies. When an electrical supply is provided, our waveform rearranges the LC molecules in a way which allows the user’s selected amount of light to pass through. When the electrical supply is switched off, the LC molecules align sporadically and scatter the light, causing the glass surface to appear opaque. With the Secritex ON LC controller, you can gradually control the amount of light you want to scatter or let pass, giving you maximum flexibility over the glass aperture.
Main Technical Specifications
Input voltage 110-240VAC.
Output voltage adjustable, numerous levels from 0 to 35VAC/70VAC.
Maximum output load: Approximately 10m2 of liquid crystal film.
Output Frequency – 25Hz-60Hz. (adjustable)
Input power consumption 5W max (under no load).
Protection: input short circuit; output short circuit; output
overvoltage; DC blocking guaranteed by design.
Operating temperature: -10 C° to 70 C°
Ordering Information
Nomenclature for the different LC smart controller
